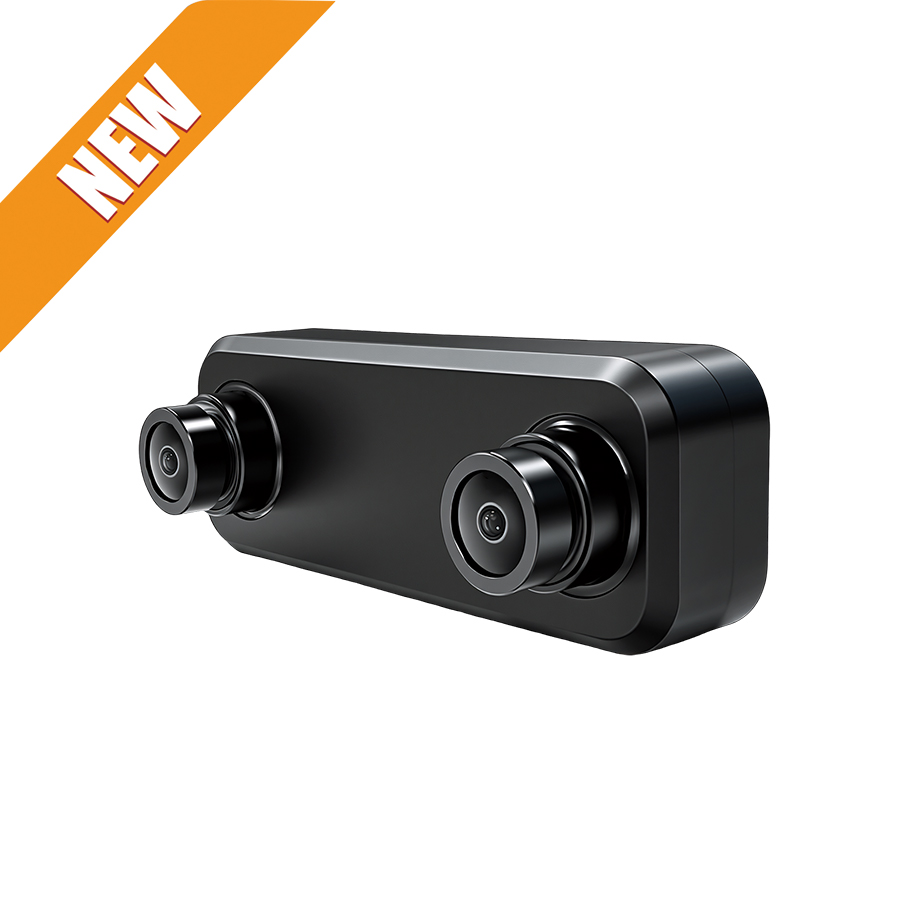

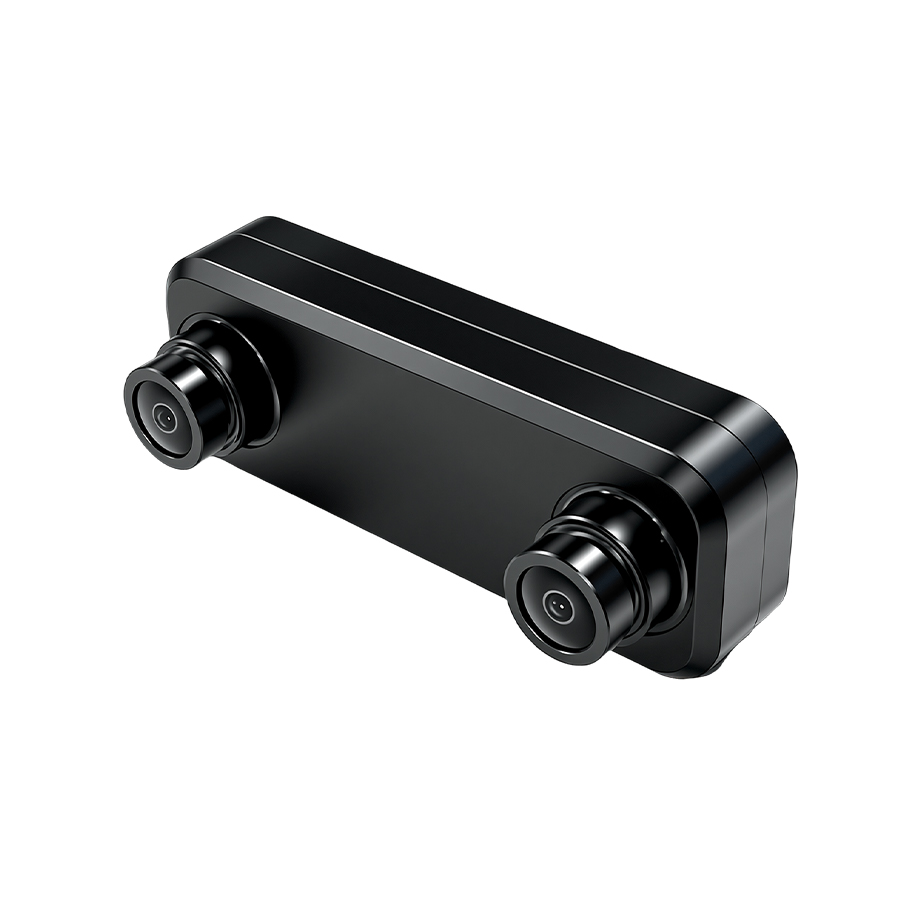

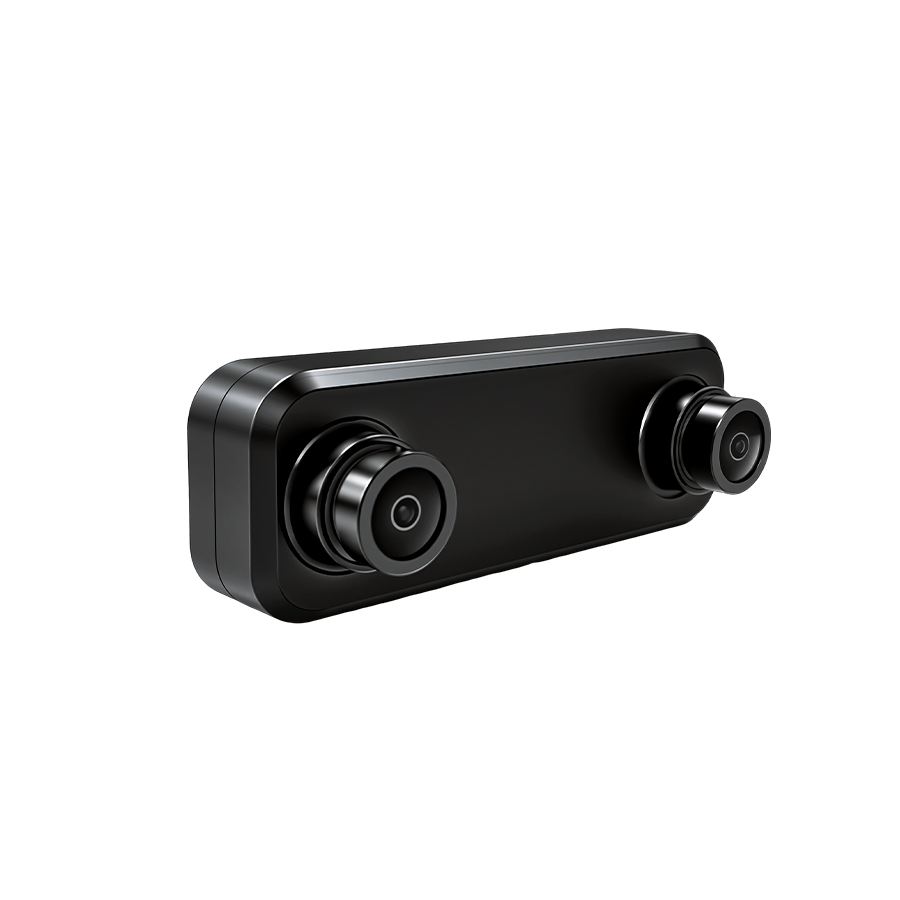

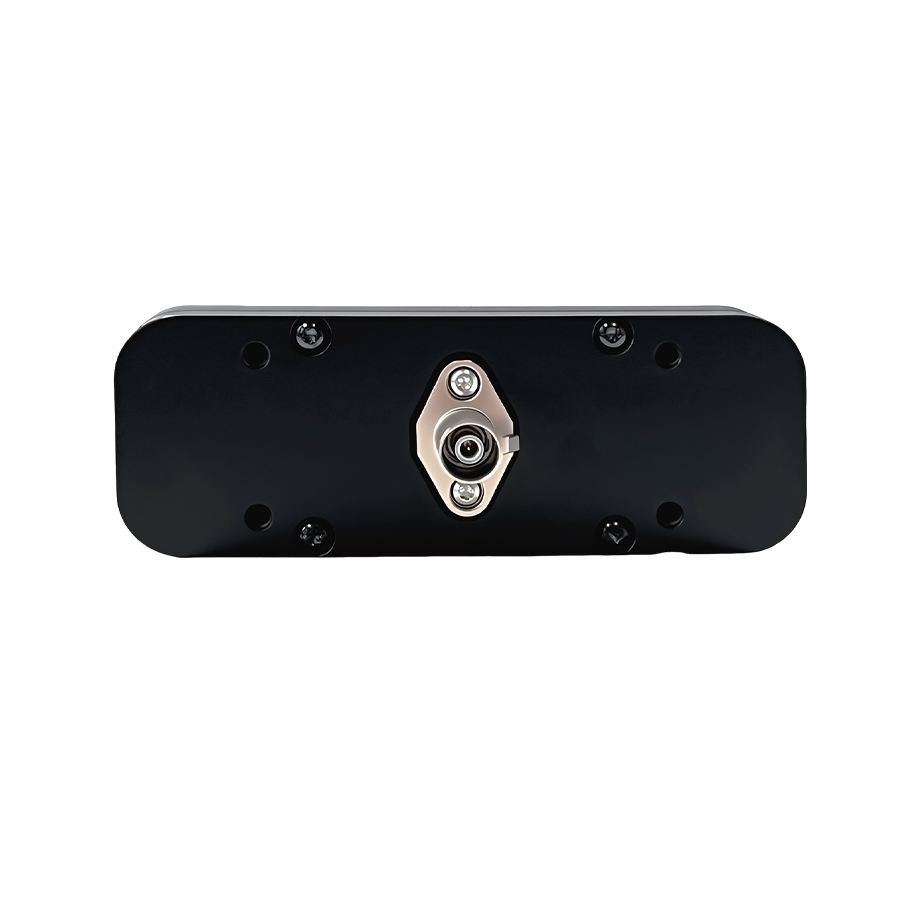

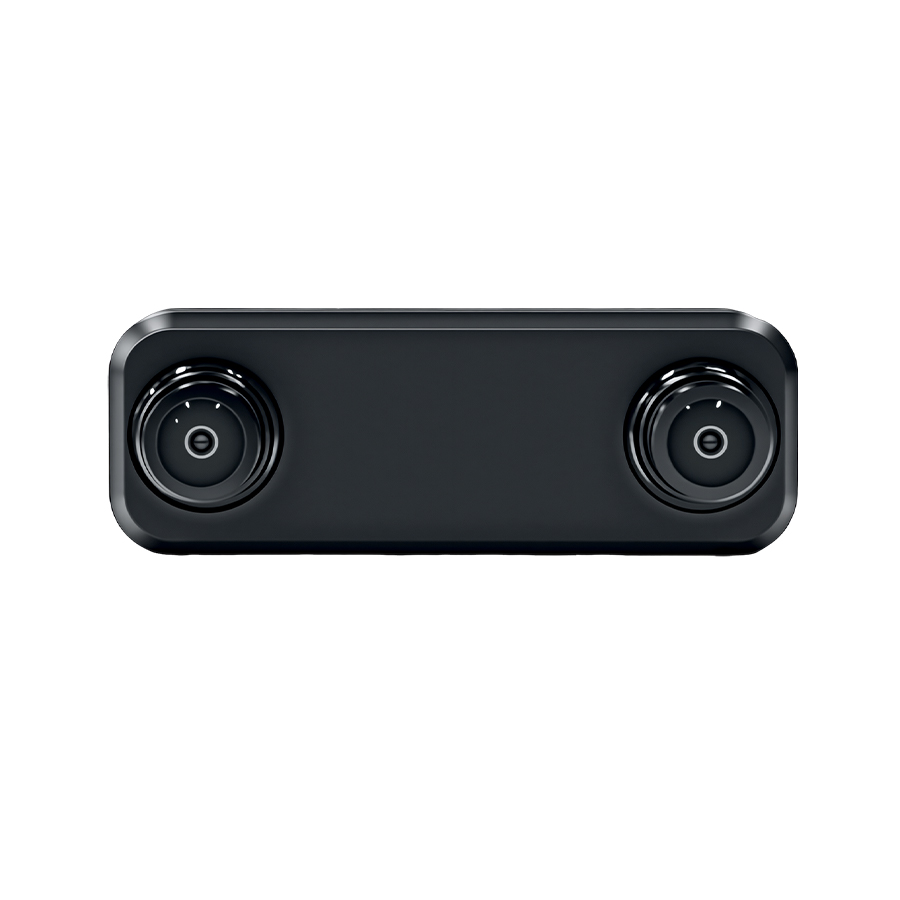

Astra S56x Stereo Camera

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Model Astra S56x

Resolution 2560 (H) × 1984 (V)

Support Platorm Jetson AGX Thor & Orin

Frame Rate 2560 × 1984 @30FPS

Output data 10-bit RAW

Sensor Type Global shutter

Operating temp.range -30°C～+70°C

Dimensions 30mm*84mm

FOV H130°±3°/ H140°±3°

Weight ＜200g

Interface GMSL2

Buy Now

DetailAccessoriesResources

undefined Overview

The Astra S56x camera system features two 5MP Global Shutter image sensors and a GMSL2 highly reliable serial interface. It is also equipped with a 6-axis IMU sensor, with a baseline of 60mm.

undefined Product Default

※ The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.

※ When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.

undefined Features

GMSL2 coaxial long-distance transmission
Global Shutter
Stereo trigger synchronization
Equipped with a 6-axis IMU sensor

undefined Application

Humanoid Robot
Depth computation
VLA
Data collection

Coaxial Cable

Product Name	Order PN#	Specification
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-JC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Female to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-PC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-PC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-JC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Female to Female
Camera coaxial Cable	SG-JSZPSZ2000L	2M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ2000L	2M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ3000L	3M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ3000L	3M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ5000L	5M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ5000L	5M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ7000L	7M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ8000L	8M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZL100L	10M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZL100L	10M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL120L	12M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL160L	16M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL200L	20M, Female to Female, IP67
