Model S36

Resolution 1920(H)×1536 (V),1920(H)×1080 (V)

Support Platorm Jetson AGX Thor & Orin

Frame Rate 1920 (H)×1536(V)@30FPS,1920(H)×1080(V)@60FPS

Output data YUV422

Sensor Type Rolling Shutter

Operating temp.range -40-85℃

Dimensions 30mm*84mm*35.8mm

FOV H120°

Weight ＜200g

Interface GMSL2

Buy Now

DetailAccessoriesDocuments

undefined Overview

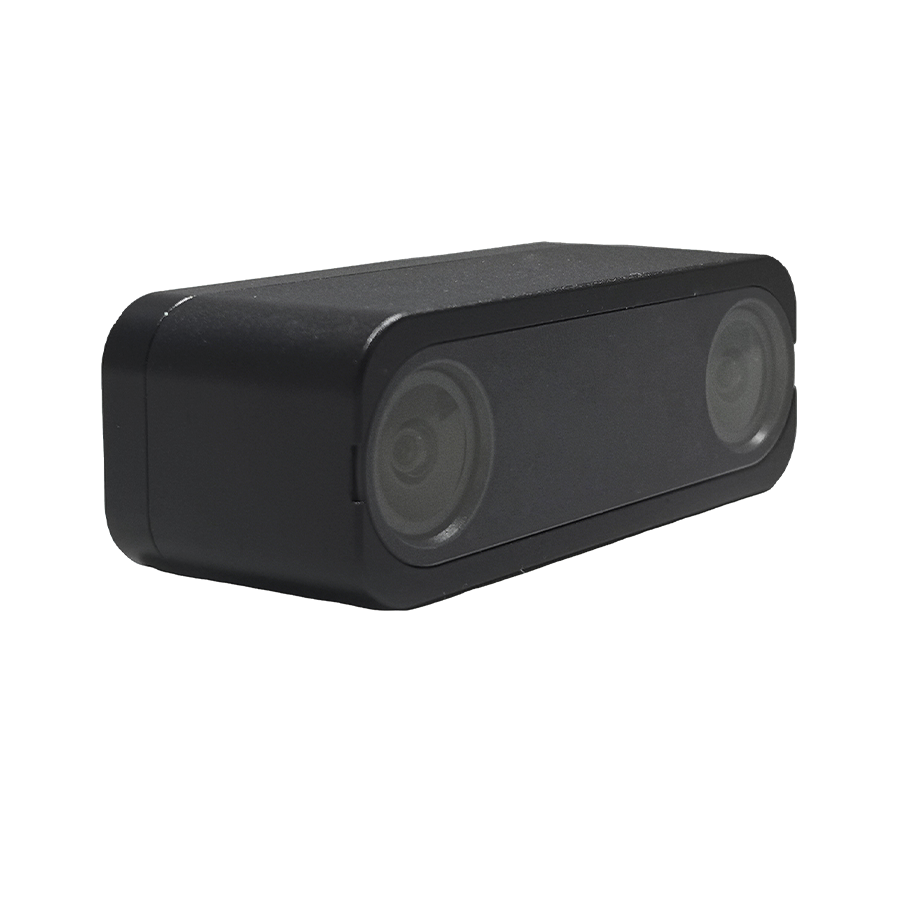

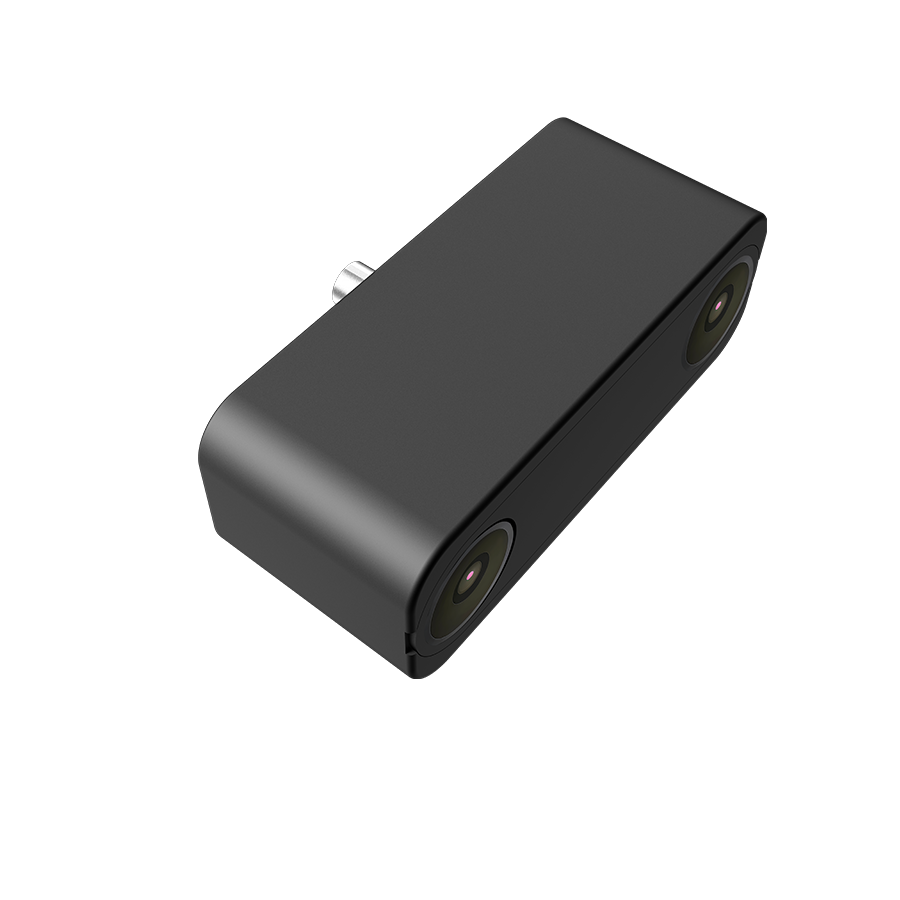

The S36 stereo camera is a stereo camera module specifically designed for embodied intelligence applications. It utilizes two 3MP high-dynamic-range (HDR) sensors and features an overall IP65 protection rating, making it suitable for robotic operations in diverse indoor and outdoor environments. The module is equipped with a 6-axis IMU sensor and mimics human eye alignment with a 60mm binocular baseline and wide-angle lenses offering a 120° HFOV. It incorporates high-precision binocular Active Alignment (AA) technology to ensure optimal optical axis consistency.

undefined Product Default

※ The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.

※ When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.

undefined Features

GMSL2 Stable Serial Interface
High Dynamic Range (HDR)
Stereo Trigger Synchronization
Integrated 6-axis IMU Sensor
H120° Ultra Wide-Angle
60mm Human-eye Baseline

undefined Application

Humanoid Robot
Robot Dog
Robotic Arm
Deep Computing

Coaxial Cable

Product Name	Order PN#	Specification
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-JC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Female to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-PC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-PC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-JC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Female to Female
Camera coaxial Cable	SG-JSZPSZ2000L	2M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ2000L	2M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ3000L	3M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ3000L	3M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ5000L	5M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ5000L	5M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ7000L	7M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ8000L	8M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZL100L	10M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZL100L	10M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL120L	12M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL160L	16M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL200L	20M, Female to Female, IP67


Product specifications and instructions

Please contact the sales of SENSING or through sales@sensing-world.com obtain.‍‍

undefined Driver List

Detailed View undefined ‍SENSING Camera Support Driver List‍

‍

Other technical documents

SerDes configuration file;
3D STP files;
The method of API interface reading internal parameters;
To learn more, please contact the sales of SENSING or through Support@sensing-world.com (Note camera QR code) Obtain.
