[3MP] Monocular Camera SHW3G
Overview

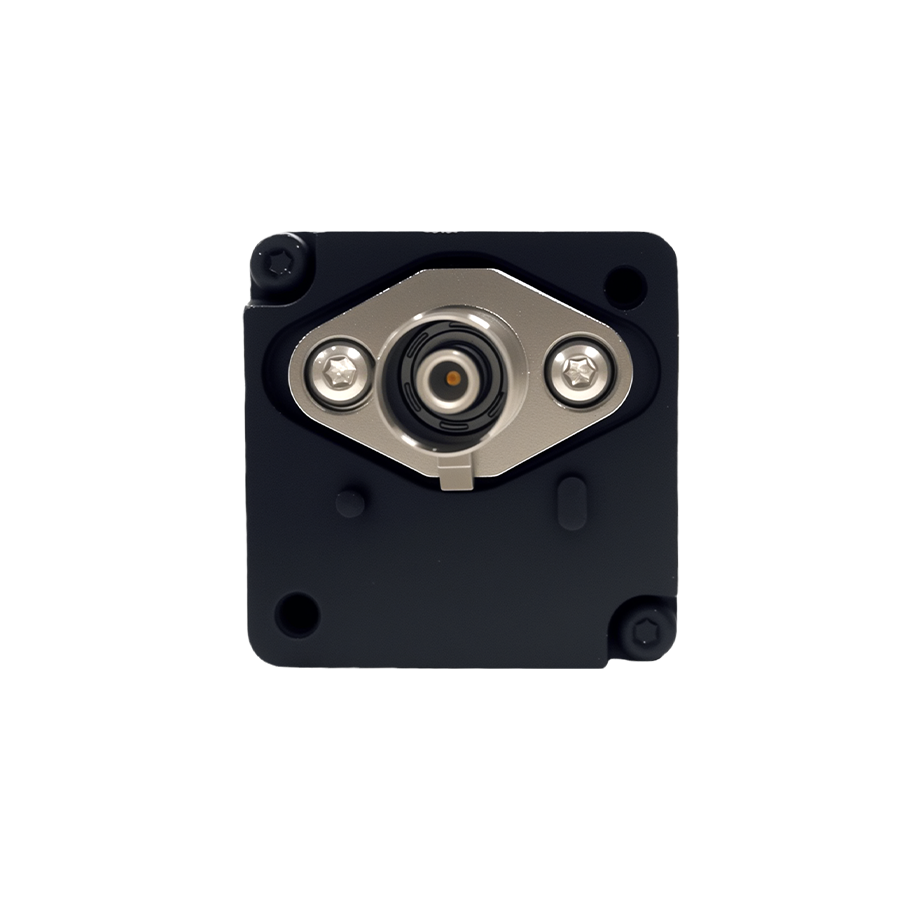

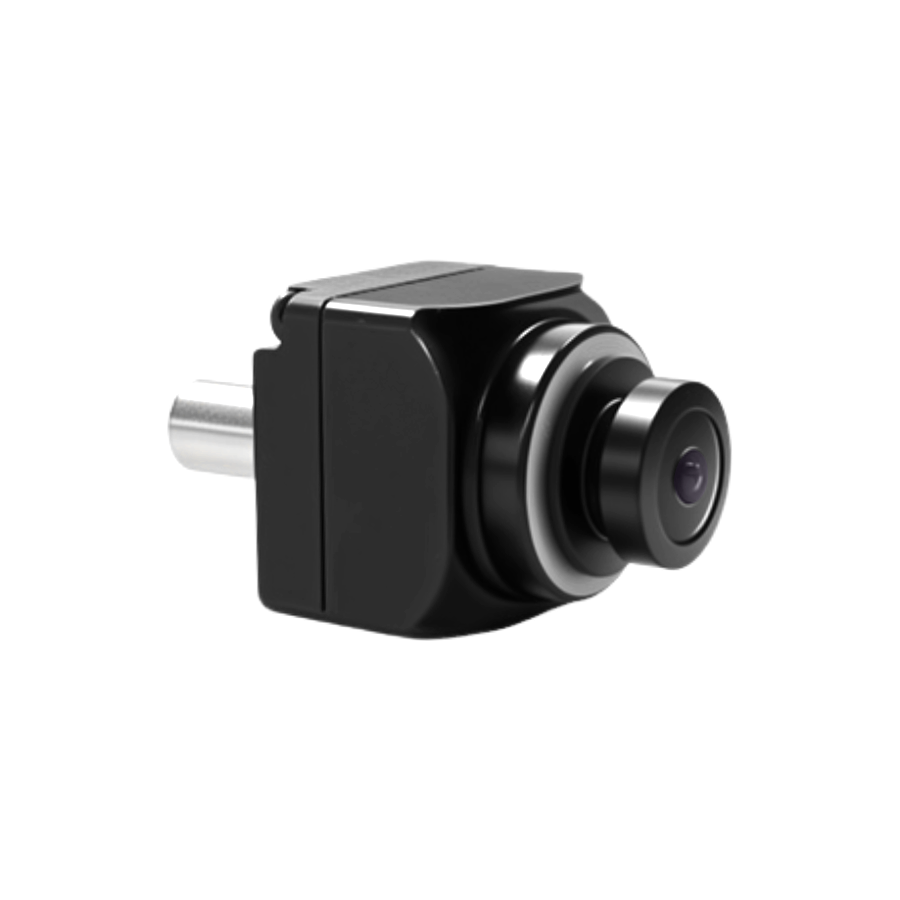

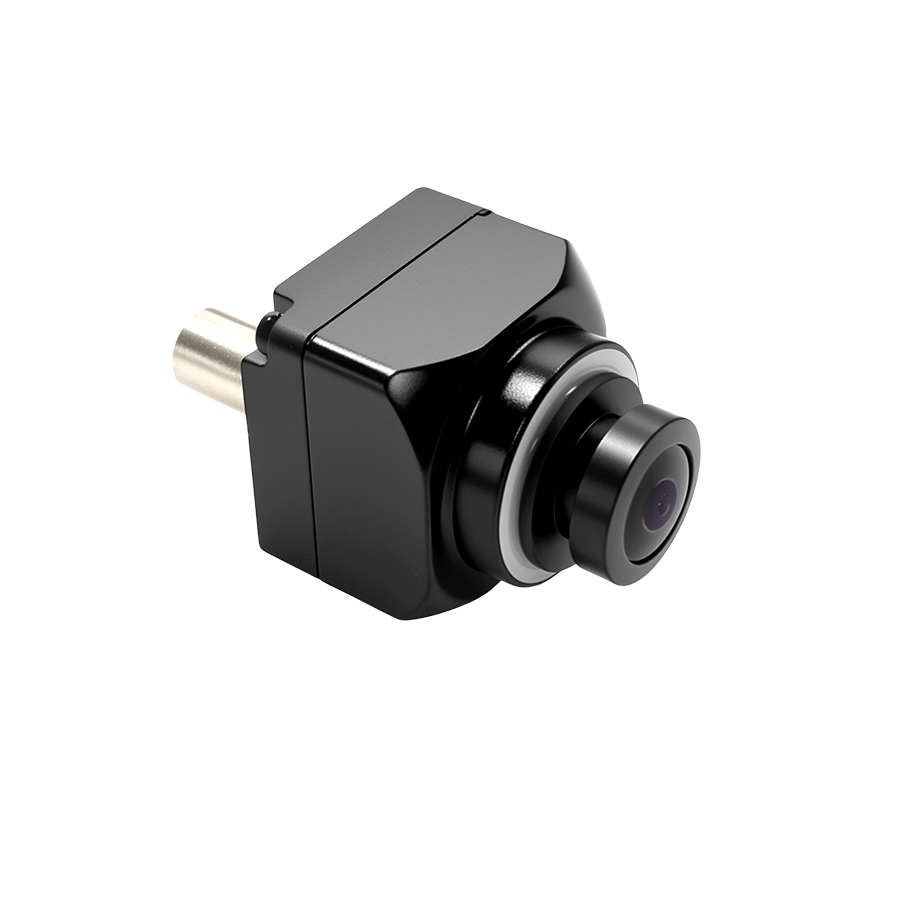

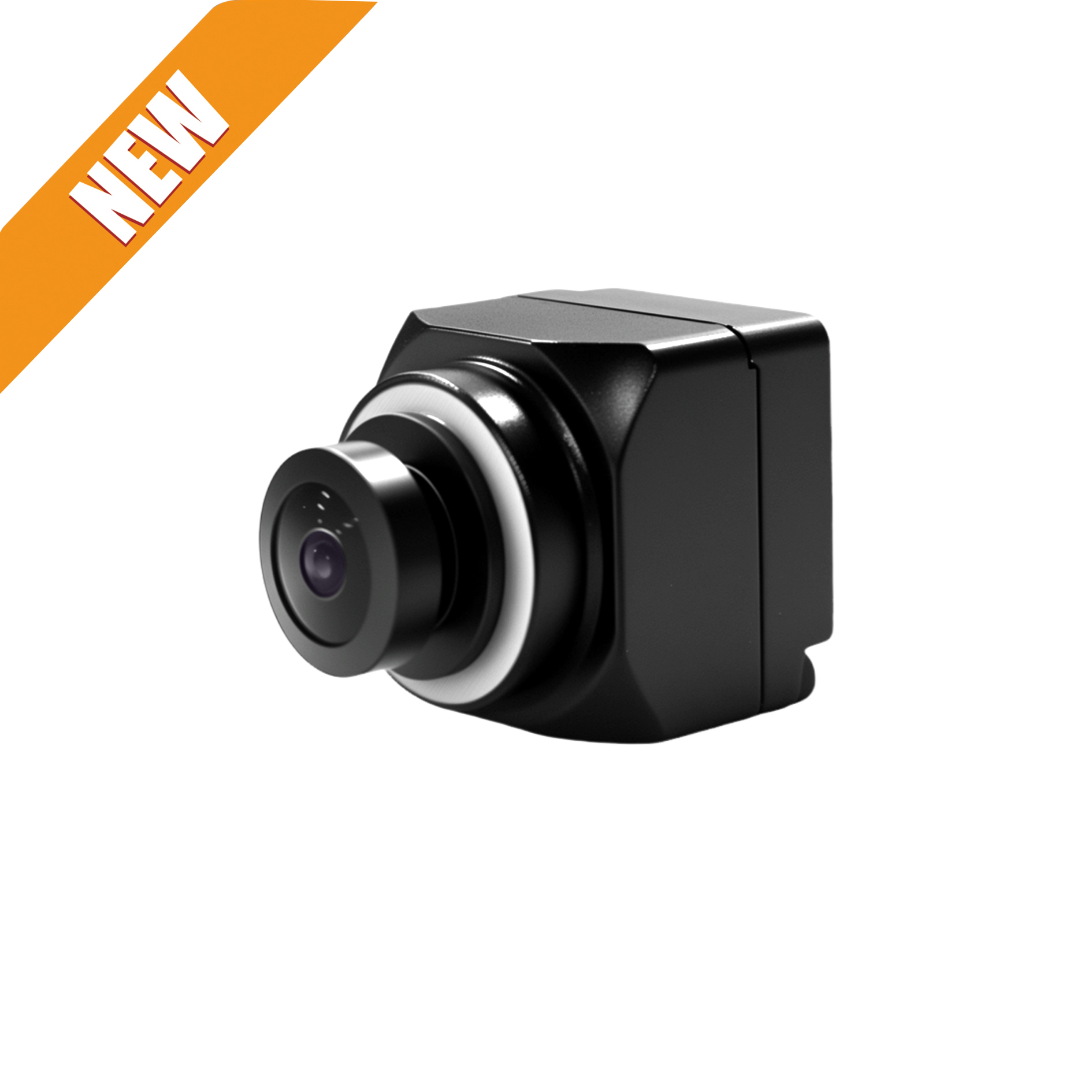

SHW3G Monocular Camera Module is specifically designed for embodied intelligence applications. It employs a 3MP Global Shutter sensor and can be installed on locations such as the head or torso of humanoid robots. Tailored for robotic perception and recognition scenarios, it delivers high-quality imaging optimized through professional calibration. The module features a compact 25x25mm size and is equipped with a wide-angle lens.
Product Default
※ The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.
※ When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.
Features
Outputs uncompressed YUV data
Global Shutter
Low latency
Supports external triggerings
Multi-camera synchronization
Application
Embodied Intelligence
Coaxial Cable
Product Name | Order PN# | Specification |
Mini-fakra Coaxial Cable 4-in-1(Rosenberg) | R4JC-JC-ZZZZ-0500L | Mini-fakra, 4 in 1, 0.5m, Female to Female |
Mini-fakra Coaxial Cable 4-in-1（TE） | T4JC-PC-ZZZZ-0500A | Mini-fakra, 4 in 1, 0.5m, Male to Female |
Mini-fakra Coaxial Cable 4-in-1(Rosenberg) | R4JC-PC-ZZZZ-0500L | Mini-fakra, 4 in 1, 0.5m, Male to Female |
Mini-fakra Coaxial Cable 4-in-1（TE） | T4JC-JC-ZZZZ-0500A | Mini-fakra, 4 in 1, 0.5m, Female to Female |
Camera coaxial Cable | SG-JSZPSZ2000L | 2M, Male to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZ2000L | 2M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZPSZ3000L | 3M, Male to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZ3000L | 3M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZPSZ5000L | 5M, Male to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZ5000L | 5M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZ7000L | 7M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZ8000L | 8M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZPSZL100L | 10M, Male to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZL100L | 10M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZL120L | 12M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZL160L | 16M, Female to Female, IP67 |
Camera coaxial Cable | SG-JSZJSZL200L | 20M, Female to Female, IP67 |
Product specifications and instructions
Please contact the sales of SENSING or through sales@sensing-world.com obtain.
Installation guide document
Click to download
Camera Module Installation Guidance
Driver List
Click here
Sensing Github to access the camera drivers for NVIDIA Jetson devices.
Other technical documents
SerDes configuration file;
3D STP files;
The method of API interface reading internal parameters;
The above technical documents can be obtained through the service platform. If you need more information, please contact the sales of SENSING or contact Support@sensing-world.com with QR code on camera attahced to obtain.
