[3MP] Monocular Camera SHF3G

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Model SHF3G

Resolution 2064H*1552V

Support Platorm NVIDIA Jetson AGX Thor

Frame Rate 2064*1552@30fps MAX125fps

Sensor RGGB

Output data RAW@12bit/10bit/8bit

Sensor Type Global Shutter

Operating temp.range -20°C～+70°C

Dimensions 25mm*25mm*32.12mm

FOV HFOV 173°

Weight <50g

Buy Now

DetailAccessoriesResources

undefined Overview

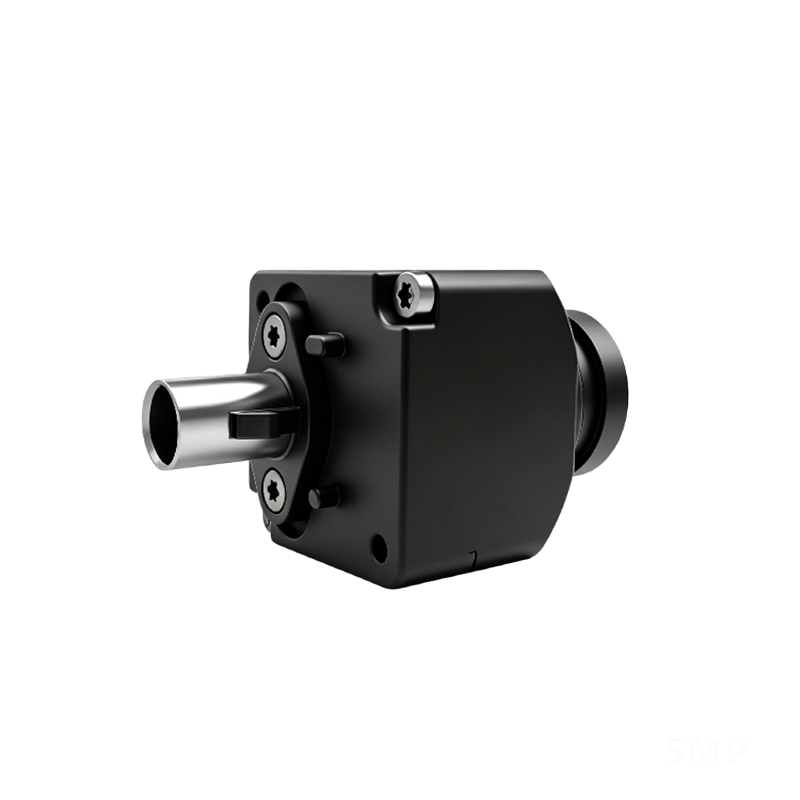

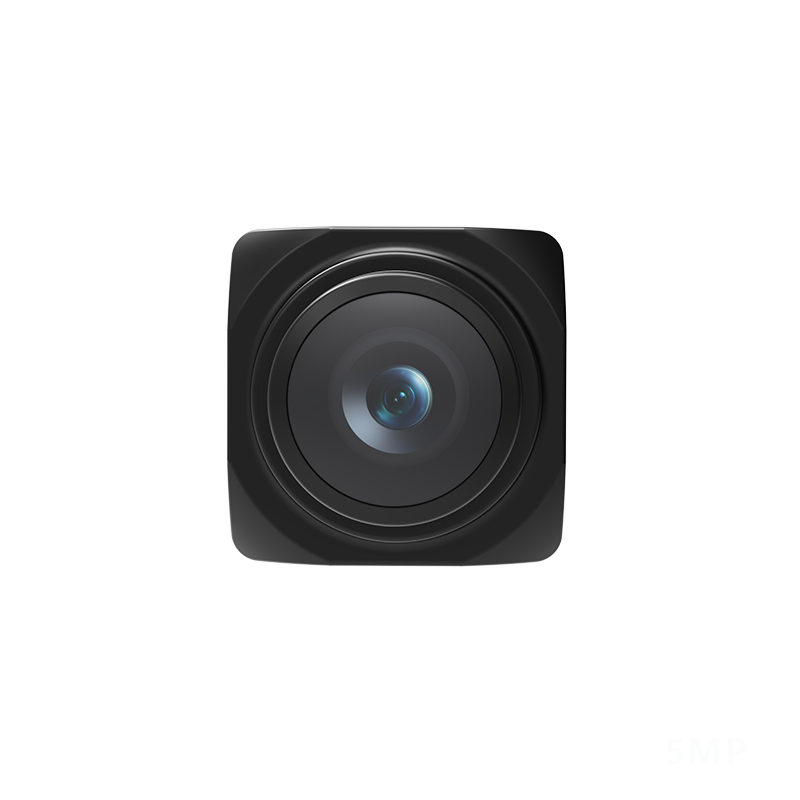

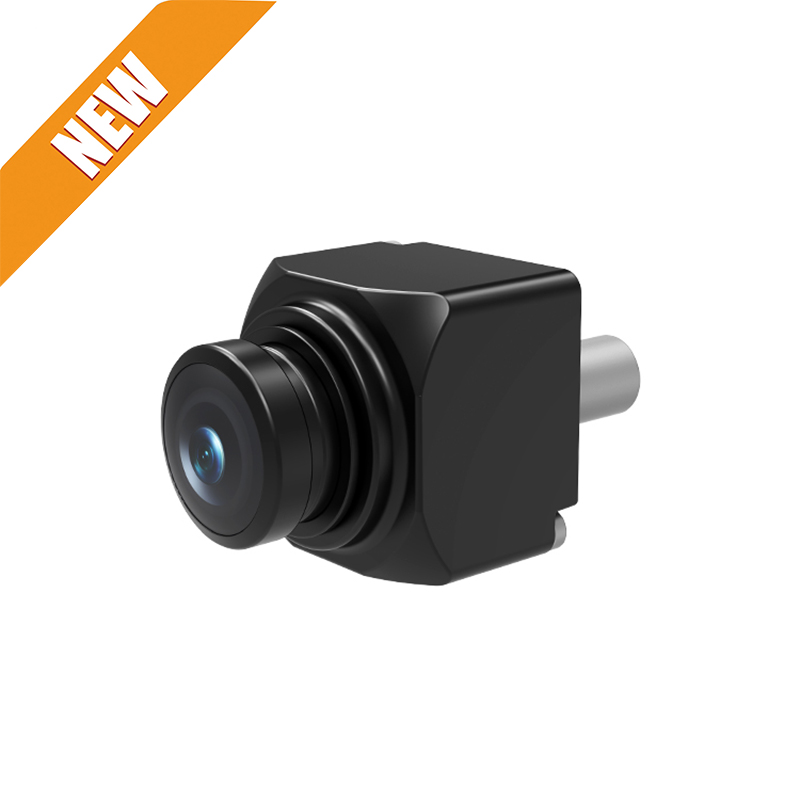

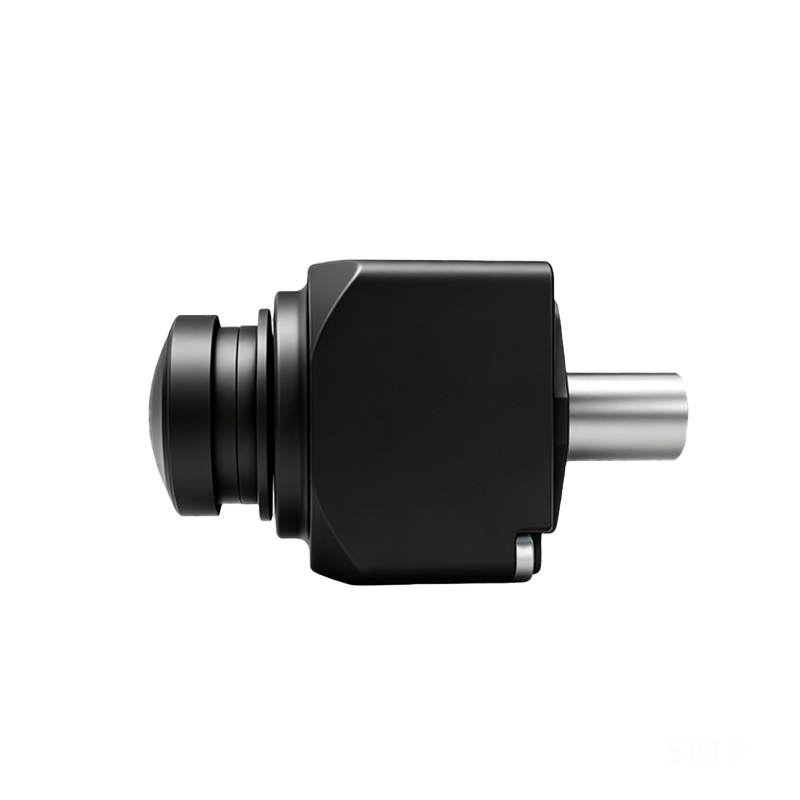

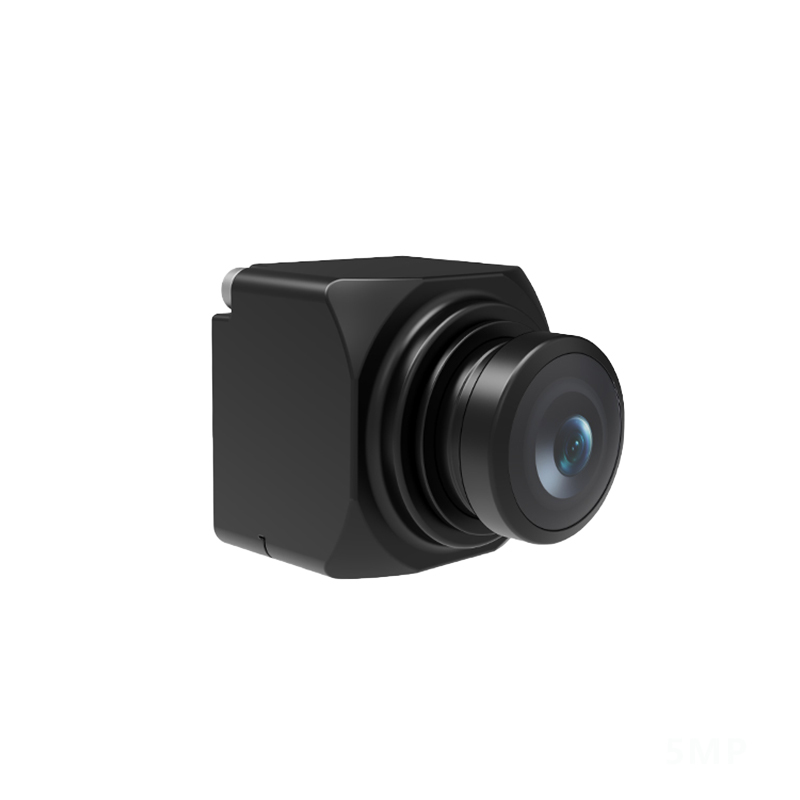

SHF3G Monocular camera module, designed for embodied intelligence applications, uses a 3MP global shutter sensor and can be mounted on the head, torso, or other parts of humanoid robots for perception and recognition tasks, delivering professionally tuned high‑quality imaging with a compact 25×25 mm footprint and a wide‑angle lens.

undefined Product Default

※ The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.

※ When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.

undefined Features

Global Shutter
Low latency
External trigger support
Multi−Camera synchronization Support
High-reliability GMSL2 interface

undefined Application

Humanoid Robot

Coaxial Cable

Product Name	Order PN#	Specification
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-JC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Female to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-PC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-PC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-JC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Female to Female
Camera coaxial Cable	SG-JSZPSZ2000L	2M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ2000L	2M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ3000L	3M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ3000L	3M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ5000L	5M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ5000L	5M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ7000L	7M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ8000L	8M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZL100L	10M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZL100L	10M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL120L	12M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL160L	16M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL200L	20M, Female to Female, IP67
