[8MP] SG8-OX08DC-5300-G2G

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Model SG8-OX08DC-5300-G2G-Hxxx

Resolution 3840H*2160V

Frame Rate Max 45fps

Sensor OMNIVSION 8.3MP OX08D10 RGGB

ISP GW5300

Output data YUV422@8bit

Serializer MAXIM MAX96717

Sensor Type Rolling Shutter

Operating temp.range -40°C～+85°C

Dimensions 30mm*30mm*22.57mm

FOV HFOV 30°/60°/120°

Image Size 1/1.73 inch CMOS

Buy Now

DetailAccessoriesResources

undefined Overview

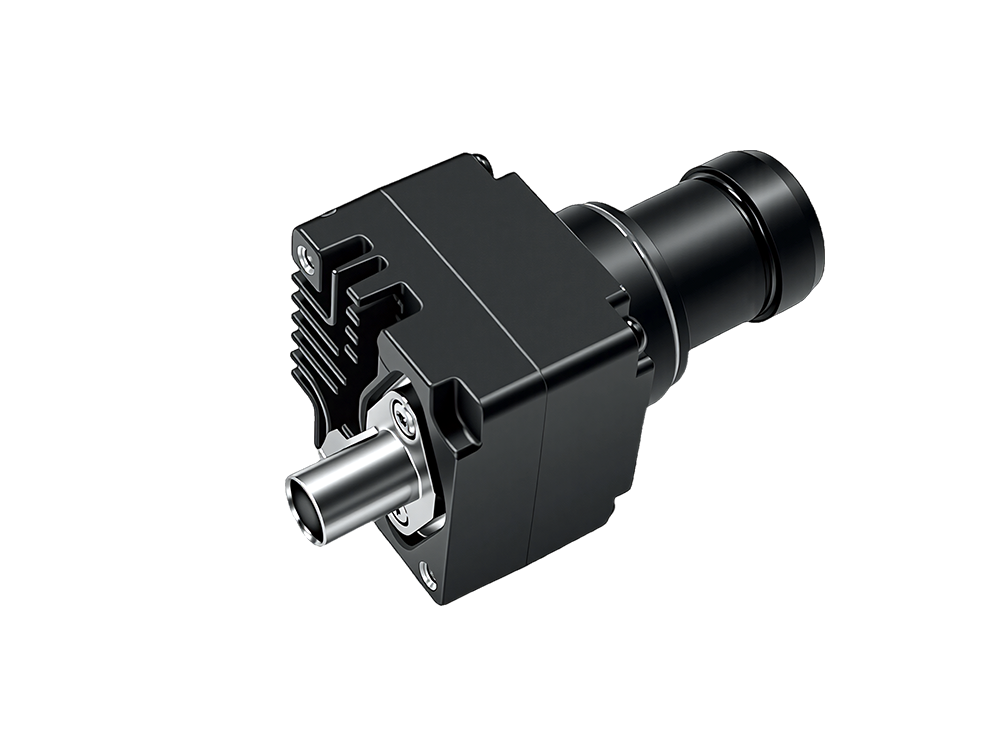

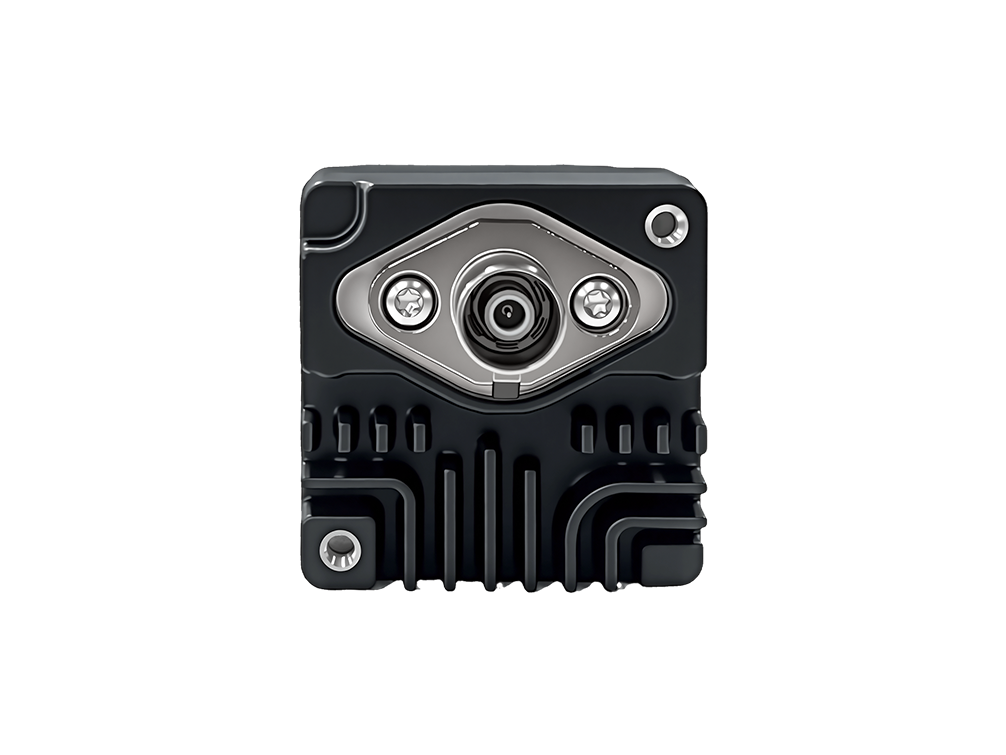

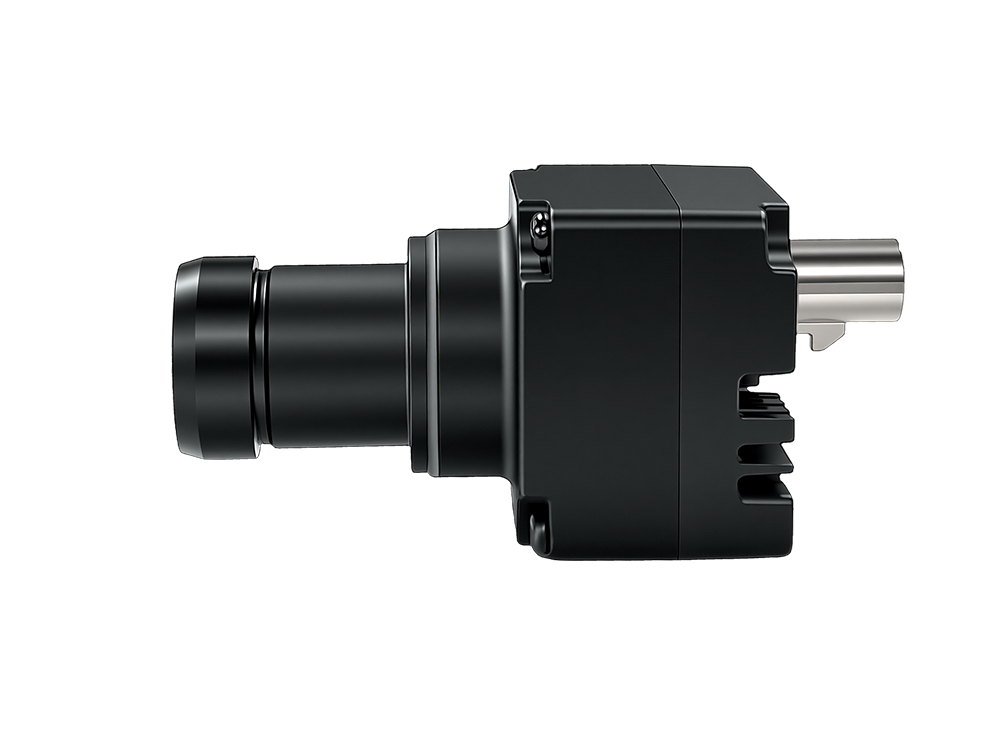

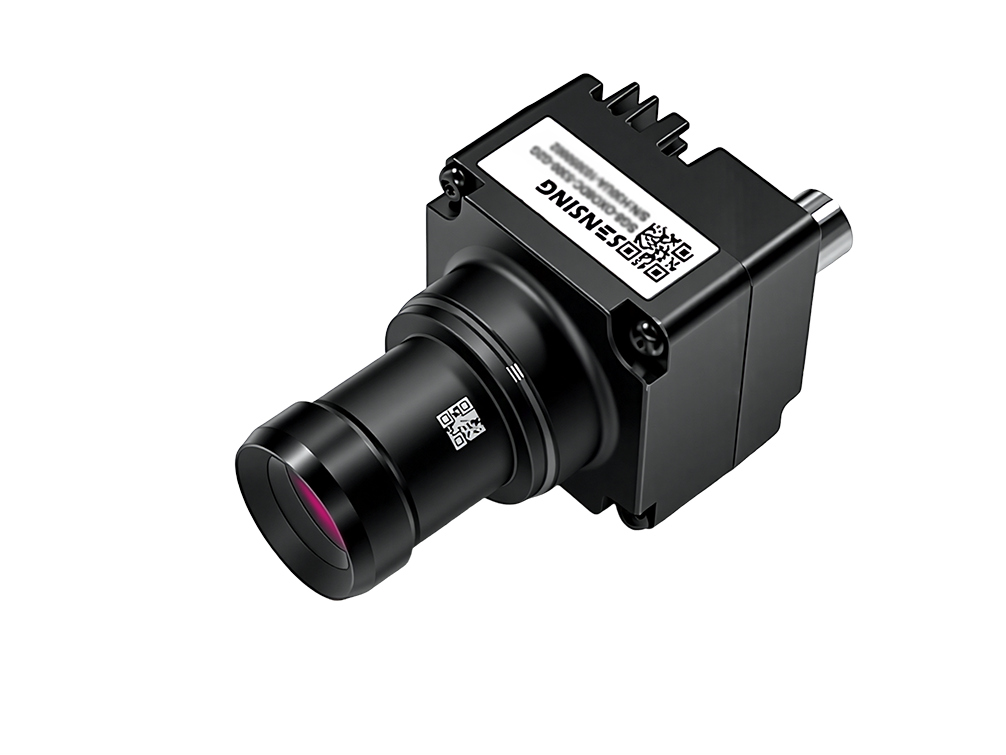

SG8-OX08DC-5300-G2A-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.

undefined Product Default

※ The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.

※ When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.

undefined Development/Capture Kits

Adapter board/Image Solution	Adaptation Developer kit /output interface	Max camera inputs	Picture
SG8A-ORIN-GMSL2‍ Adapter board	NVIDIA Jetson AGX Orin/AGX Xavier Developer kit	8
SerDes Camera to USB Converter SG8-U30-GMSL2	NVIDIA Jetson Orin Nano/NX Developer Kit ARM platform/computer/industrial computer/USB3.0 interface	1	Compatible with UVC protocol, providing upper computer acquisition software
CoaxCapture II GMSL Capture Card	PC/IPC/PCIe3.0	8
※ If you need relevant development support, please contact Sales@sensing-world.com

undefined Features

Output format: Uncompressed YUV422 format
S-mount IP67 compliant lens focused and glued at our factory
Multi−Camera synchronization Support
Support different focal length lens

undefined Application

Automotive
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robots

Coaxial Cable

Product Name	Order PN#	Specification
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-JC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Female to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-PC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1(Rosenberg)	R4JC-PC-ZZZZ-0500L	Mini-fakra, 4 in 1, 0.5m, Male to Female
Mini-fakra Coaxial Cable 4-in-1（TE）	T4JC-JC-ZZZZ-0500A	Mini-fakra, 4 in 1, 0.5m, Female to Female
Camera coaxial Cable	SG-JSZPSZ2000L	2M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ2000L	2M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ3000L	3M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ3000L	3M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZ5000L	5M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZ5000L	5M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ7000L	7M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZ8000L	8M, Female to Female, IP67
Camera coaxial Cable	SG-JSZPSZL100L	10M, Male to Female, IP67
Camera coaxial Cable	SG-JSZJSZL100L	10M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL120L	12M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL160L	16M, Female to Female, IP67
Camera coaxial Cable	SG-JSZJSZL200L	20M, Female to Female, IP67
