SG3-ISX031C-MIPI-HSBKIT
Product Specifacition

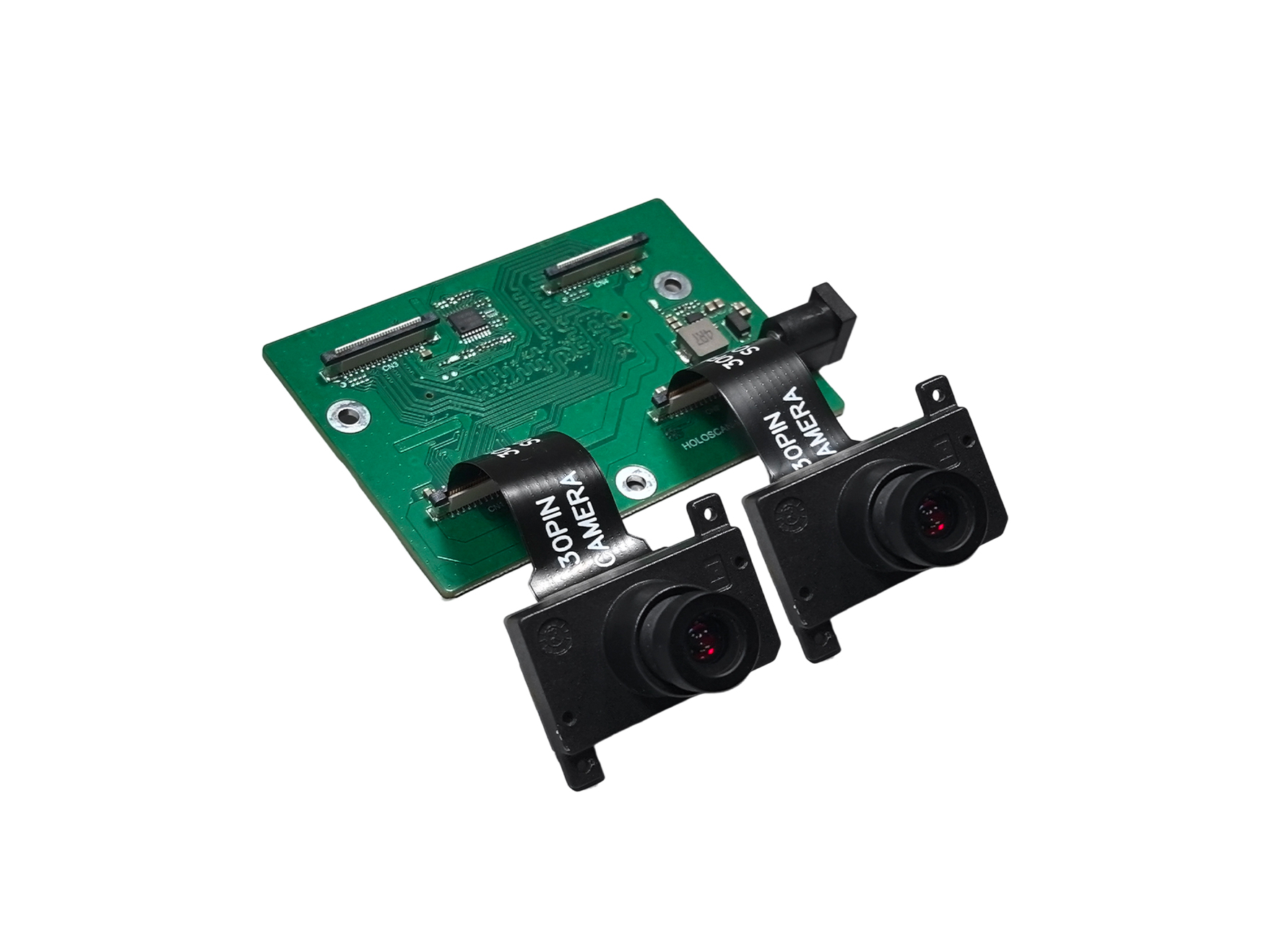

SG3-ISX031C-MIPI-HSBKIT
The cameras development kit based on the SONY ISX031 2.95MP RGGB sensor, specifically optimized for the NVIDIA Holoscan Sensor Bridge platform.
It features 1/2.42-inch CMOS sensor and supports YUV422 image output at a resolution of 1920×1536. The kit is compatible with M12 lens mounts, making it ideal for high-precision imaging in applications such as IoT, robotics, and Medical.
Key Features
Support NVIDIA Holoscan Sensor Bridge Platform
Output Pixel：1920×1536
Support diferent focal length lens
Output format: YUV422 format
Allow customizaton
Application
IOT
Robots
Medical
List of Development Kits
No. | Product model | Product model | Remark |
1 | SG3-ISX031C-MIPI-Hxxx | 1 | Up to 2 cameras at most |
2 | SG2A-HOLOSCAN-MIPI-A1 | 1 | / |
3 | FPC-Same Side_0.5mm_L-50mm | 1 | Up to 2 cameras at most |
Product Default
※ The default shipping status of this product is FIXED lens, and users do not need to adjust the focus, nor can they replace the lens. If it is necessary to change the lens independently, it is necessary to make a note when placing an order. After changing the lens, the image quality is not within the scope of service.
※ By default, this product does not calibrate the camera's internal parameters. If you need to calibrate the camera's internal parameters and write them to the camera, you need to make a note when placing an order.
For more details, Please contact the sales staff, the email is Sales@sensing-world.com.
collocation Adapter board
Name | Model | Description | Picture |
MIPI adapter board | SG2A-HOLOSCAN-MIPI-A1 Adapter board | 2*MIPI cameras Standard NVDIA standard 120Pin interface design |
|
FPC cables
Name | Specification | Picture |
30Pin FPC | FPC-Same Side_0.5mm_L-50mm |
|
Product specifications and instructions
Click to download
SG3-ISX031C-MIPI-HSBKIT Datasheet
Other technical documents
To learn more, please contact the sales of SENSING or through Support@sensing-world.com (Note camera QR code) Obtain.
